Frameset Specifications
Frameset

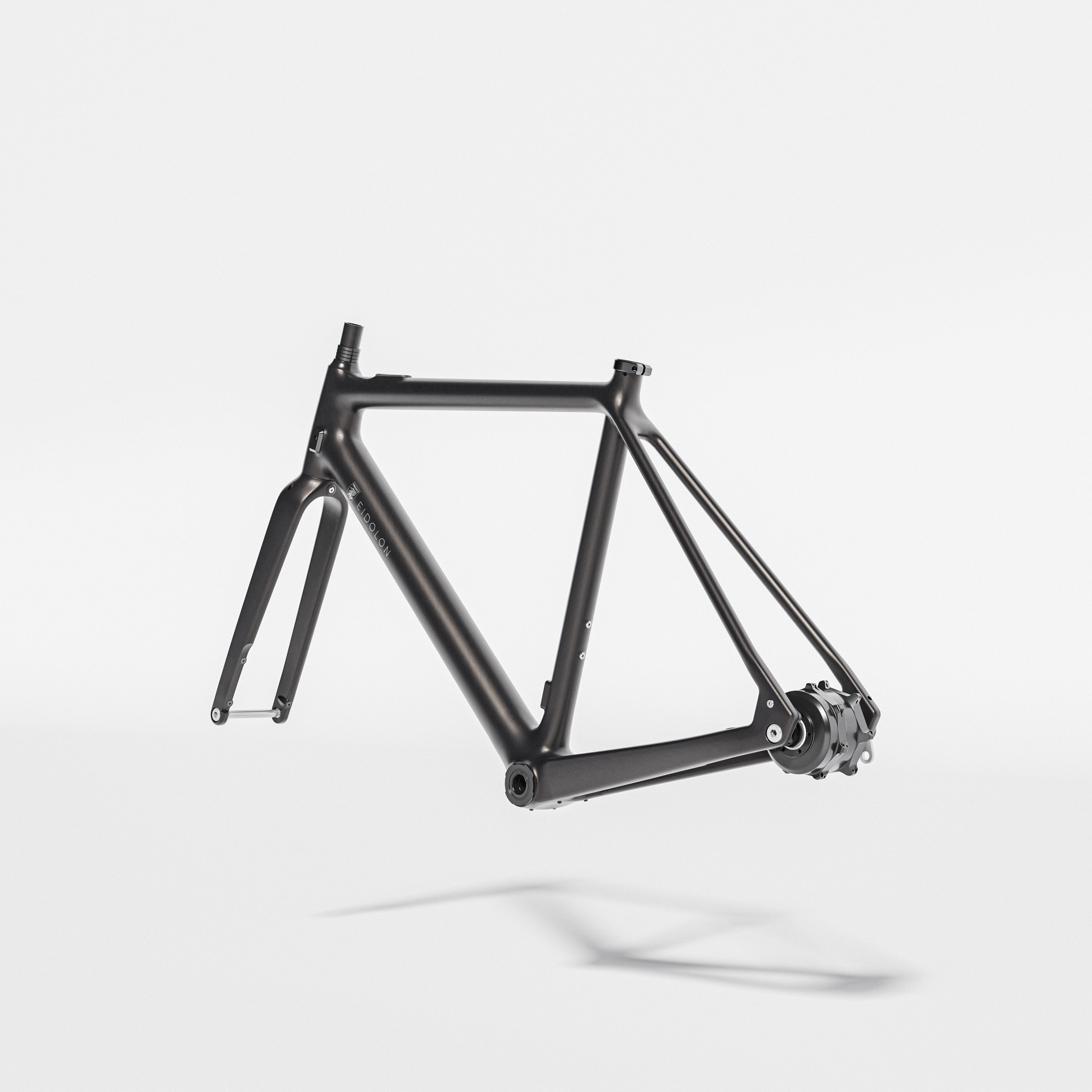

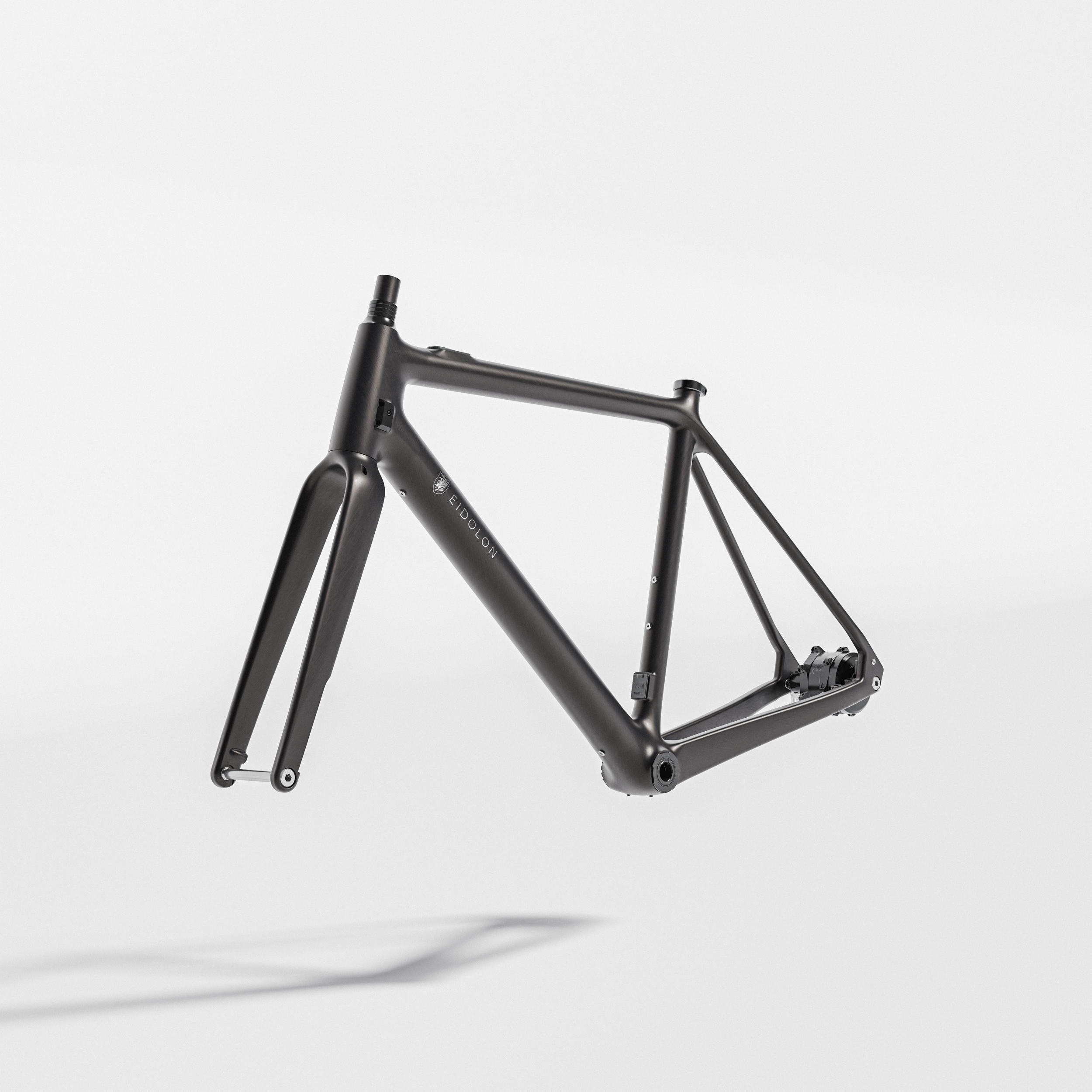

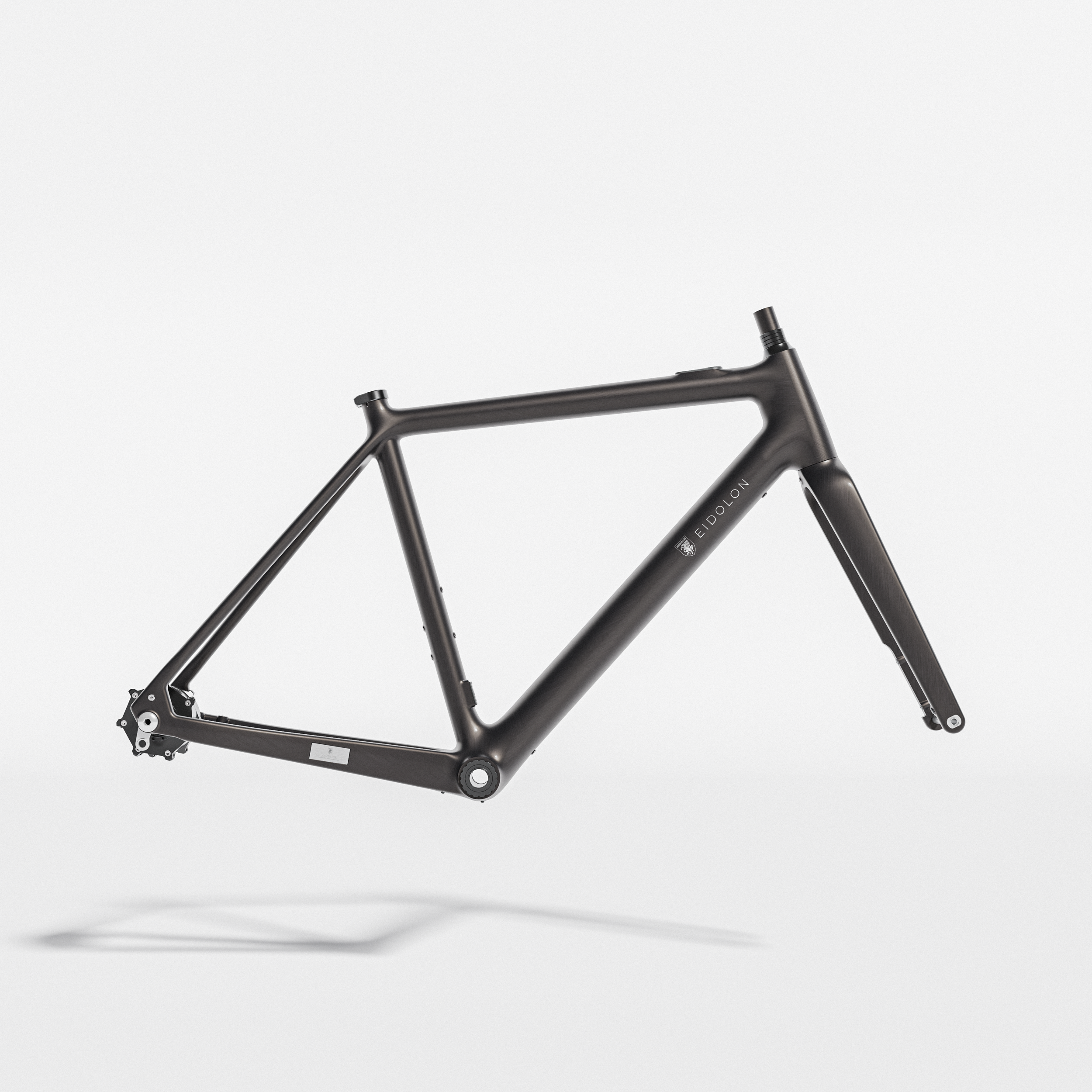

Ponomarets EIDOLON, carbon fibre monocoque
Sizes S, M and L

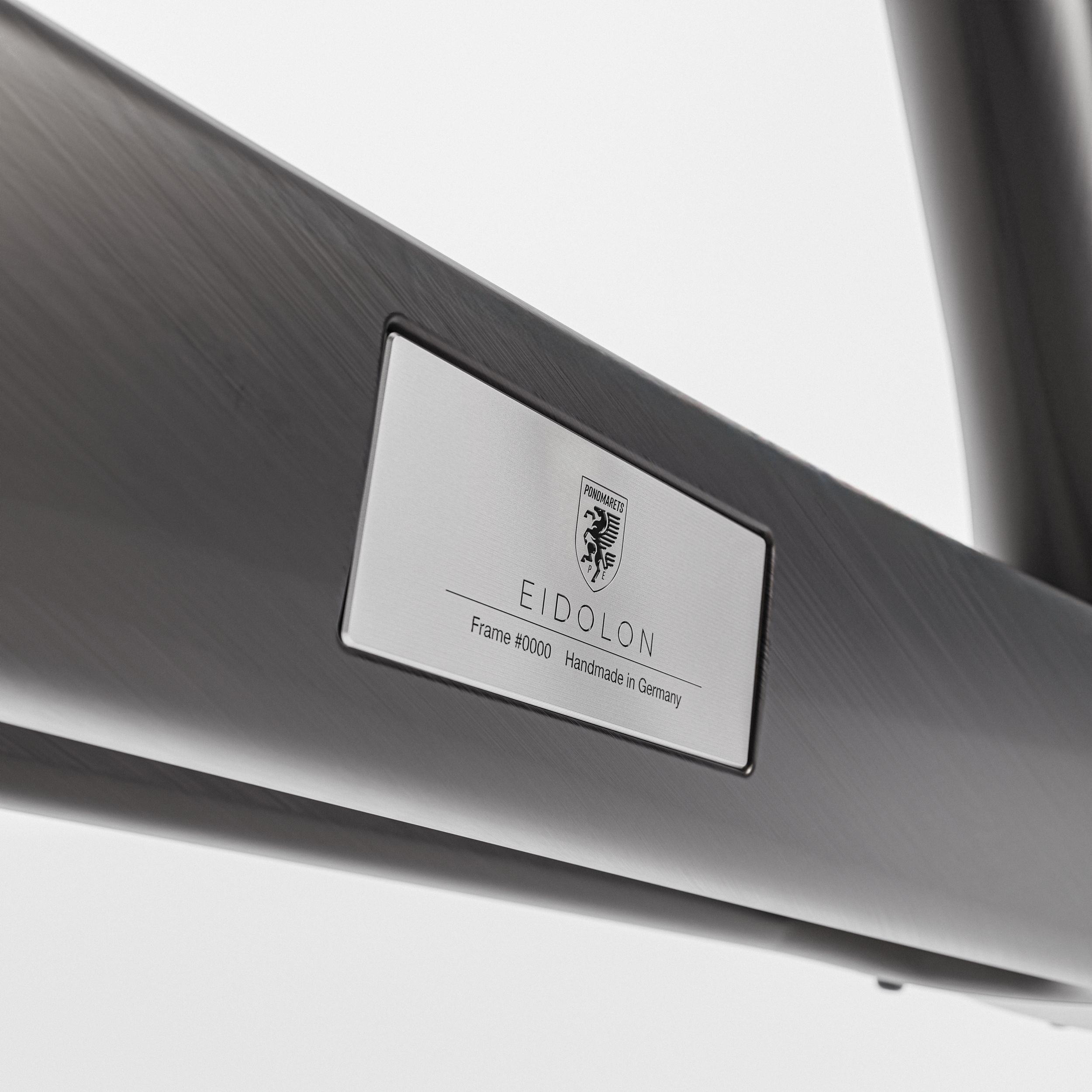

Made in Germany
Frameset weight*
1.5 kg
Performance
Range
Up to 100 km
Pedal Assist
EU: Up to 25 km/h
US: Up to 20 mph
Max System Weight**
120 kg
Colour
Clear coated uni-directional carbon fibre
Electric
Motor

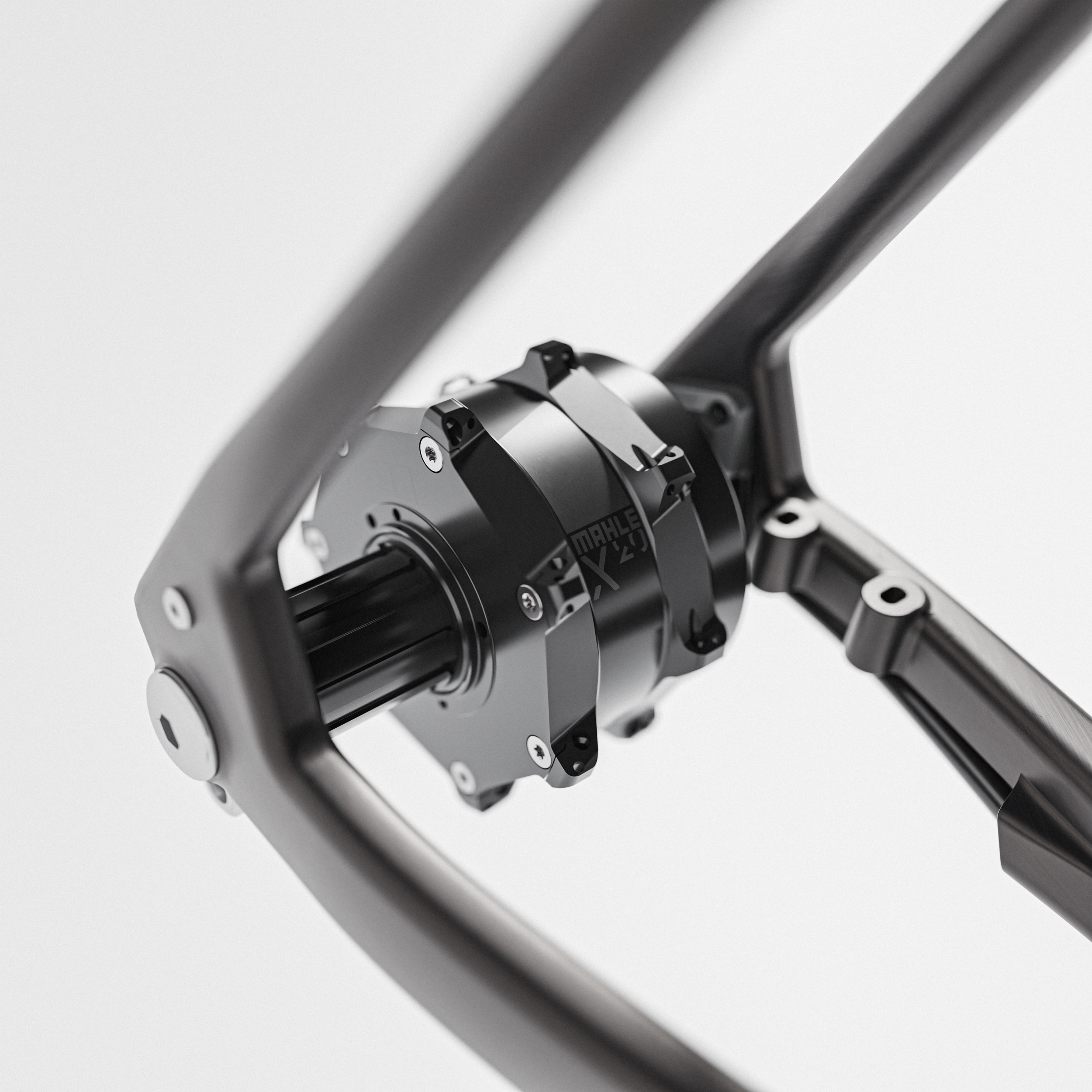

Mahle X20 Rear Hub
275 W, 65 Nm, torque assist
Battery
Mahle iX250
Internal battery, 236 Wh
Controls
Single button control
Mahle ONE Head Unit
App
Mahle SmartBike
iOS and Android
Bottom Bracket
Mahle Torque and cadence sensor
PF46-30
Other
Headset
Wolf Tooth
Premium IS41/52
Made in the USA
Headset Spacers
Wolf Tooth
4x5 mm, alloy
Made in the USA
Seatpost Clamp
Intend Corona
Made in Germany

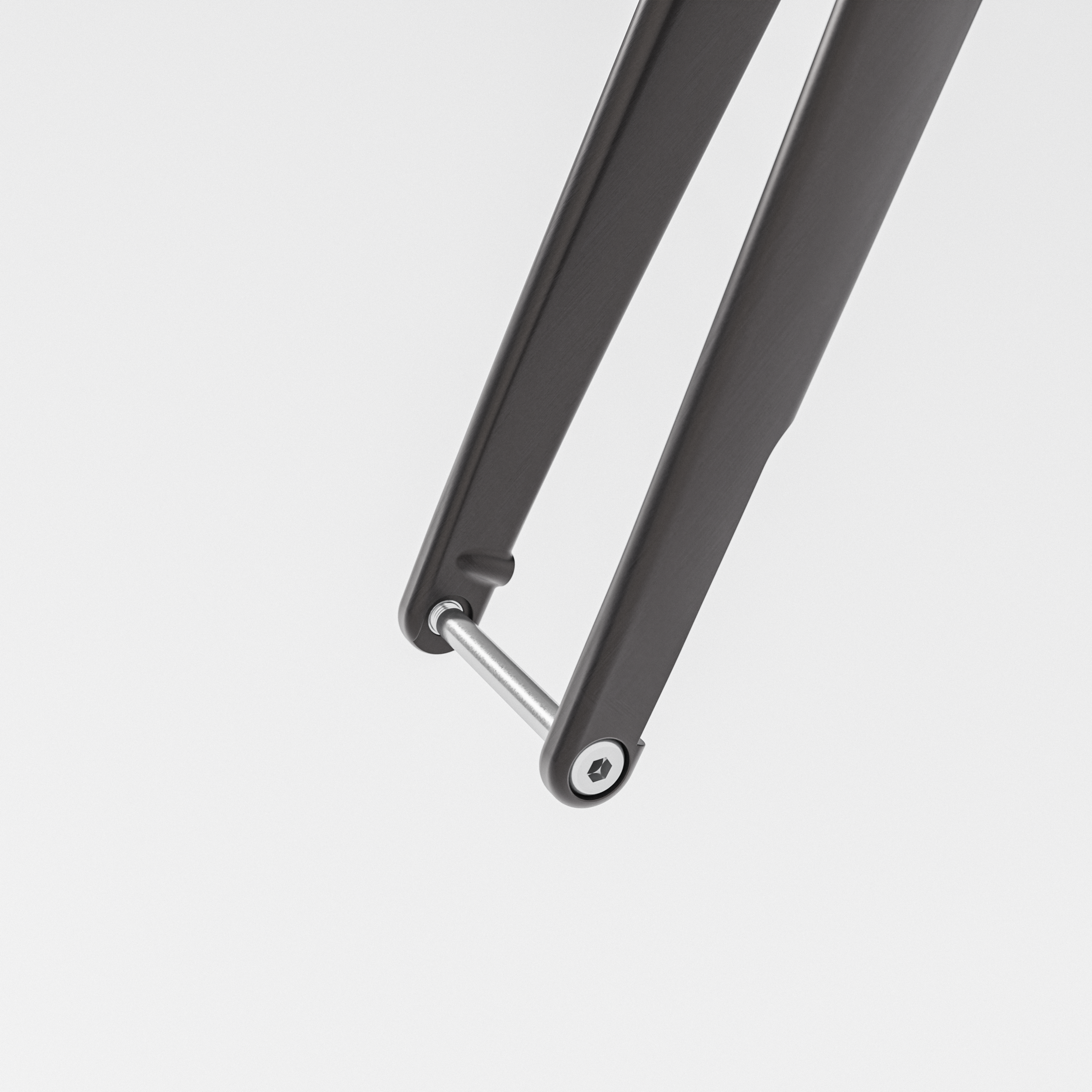

Front Axle
Ponomarets Titanium Axle
1.5x120 mm
Made in Italy
Rear Axle
Ponomarets Titanium Axle
1.5x178 mm
Made in Italy
Mounting Bolts
Bottle cage/range extender/
fender mounts
M5 x12 titanium bolts
In the box
Ponomarets EIDOLON Frameset
Mahle Active Charger
Documentation and manuals
Recommended
Drivetrain & Wheelset
Drivetrain
SRAM 1x12-speed
Mechanical or wireless
Wheelset
28 “; 24 or 28 spokes front
28 spokes rear
Front hub: 6-Hole 15x100 mm Thru Axle
Max Tyre Clearance
40 mm
Interfaces
Brakes
Flatmount
Min brake rotor size: 160 mm
Seatpost
31.6 mm
* – for frame size M, excluding paintwork. May vary within +/-5%, depending on the manufacturing tolerances.
** – calculated as the total weight of the eBike, rider and luggage.
Geometry
| Frame size | S | M | L |
|---|---|---|---|
| A – Stack in mm | 553 | 572.8 | 602 |
| B – Reach in mm | 395 | 405 | 430 |
| C – Wheelbase in mm | 1031 | 1057 | 1086 |
| D – Seat Tube Length in mm | 500 | 538 | 580 |
| E – Top Tube Length in mm | 520 | 562 | 600 |
| F – Head Tube Length in mm | 137 | 158 | 189 |
| G – Head Tube Angle | 71° | 71° | 71° |
| H – Seat Tube Angle | 74° | 74° | 74° |
| I – Chainstay Lenght in mm | 435 | 435.2 | 435 |
| J – Bottom Bracket Offset in mm | 75 | 75 | 75 |
| K – Fork Offset in mm | 45 | 45 | 45 |
| L – Standover Height in mm | 757 | 777 | 807 |
Bespoke Enquiry
Begin your commission with your build in mind. Share how you ride and what matters. We’ll personalise your EIDOLON Frameset to suit.
