Ponomarets Signature Equipment
Ponomarets, carbon fibre monocoque
Sizes S, M and L
Made in Germany
Frameset
eBike weight*
9.9 kg
Performance
Range
Up to 100 km
Pedal Assist
EU: Up to 25 km/h
US: Up to 20 mph
Max System Weight**
120 kg
Colour
Platinum Grey
Jet Black
Clear coated uni-directional carbon fibre
Electric
Motor
Mahle X20 Rear Hub
275 W, 65 Nm, torque assist
Battery
Mahle iX250
Internal battery, 236 Wh
Controls
Single button control
Mahle ONE Head Unit
App
Mahle SmartBike
iOS and Android
Headlight
Supernova
Mini 2
Taillight
Supernova
TL3 Mini
Drivetrain
Crankset (Choice of)
SRAM RED
Carbon crank arms, 40T
or
Actofive Signature X
Optimised for EIDOLON, 40T
Made in Germany
Rear Derailleur
SRAM
RED AXS
Shifter
SRAM
Eagle AXS Controller
Cassette
SRAM
RED XG-1290
12-sp, 10-36T
Ponomarets high performance brake set
CNC-machined and assembled by hand in Germany
Brakes
Wheels
Rims: Schmolke TLO 37mm
Carbon fibre
Customised for Ponomarets
Tyres: Challenge Strada Bianca 700x36c, handmade
Customised for Ponomarets
Spokes: Sapim CX-Ray
2.0 - (0.9x2.2) - 2.0 mm
24H front, 28H rear
Tubes: Schwalbe Aerothan
Made in Germany
Front Hub
Ponomarets performance hub
Made in Germany
Cockpit
Bar end plugs
Wolf Tooth
Alloy
Made in the USA
Grips
ESI
Racer’s Edge
Made in the USA
Saddle
Fizik
Vento Argo Adaptive 00
Headset spacers
Wolf Tooth
4x5 mm, alloy
Made in the USA
Seatpost clamp
Intend Corona
Made in Germany
Stem
Ponomarets
CNC machined aluminium
Made in Germany
Seatpost
Schmolke TLO, 31.6 mm
Carbon fibre
Customised for Ponomarets
Made in Germany
Other
Chain
SRAM
Eagle
Pedals
Acros
Urban
Mounting bolts
Bottle cage/range extender/fender mounts
M5 x12 titanium bolts
Headset
Wolf Tooth
Premium IS41/52
Made in the USA
Handlebar
Schmolke Flatbar TLO
Carbon fibre
Made in Germany
Rear Axle
Ponomarets Titanium Axle
1.5x178 mm
Made in Italy
Front Axle
Ponomarets Titanium Axle
1.5x120 mm
Made in Italy
Ponomarets EIDOLON
Mahle Active Charger
Wera Bicycle Set Torque 1
Reflectors
Documentation and manuals
In the box
* – for frame size M, excluding pedals and lights. May vary within +/-5%, depending on the manufacturing tolerances.
** – calculated as the total weight of the eBike, rider and luggage. For more information, please see Terms of Service.

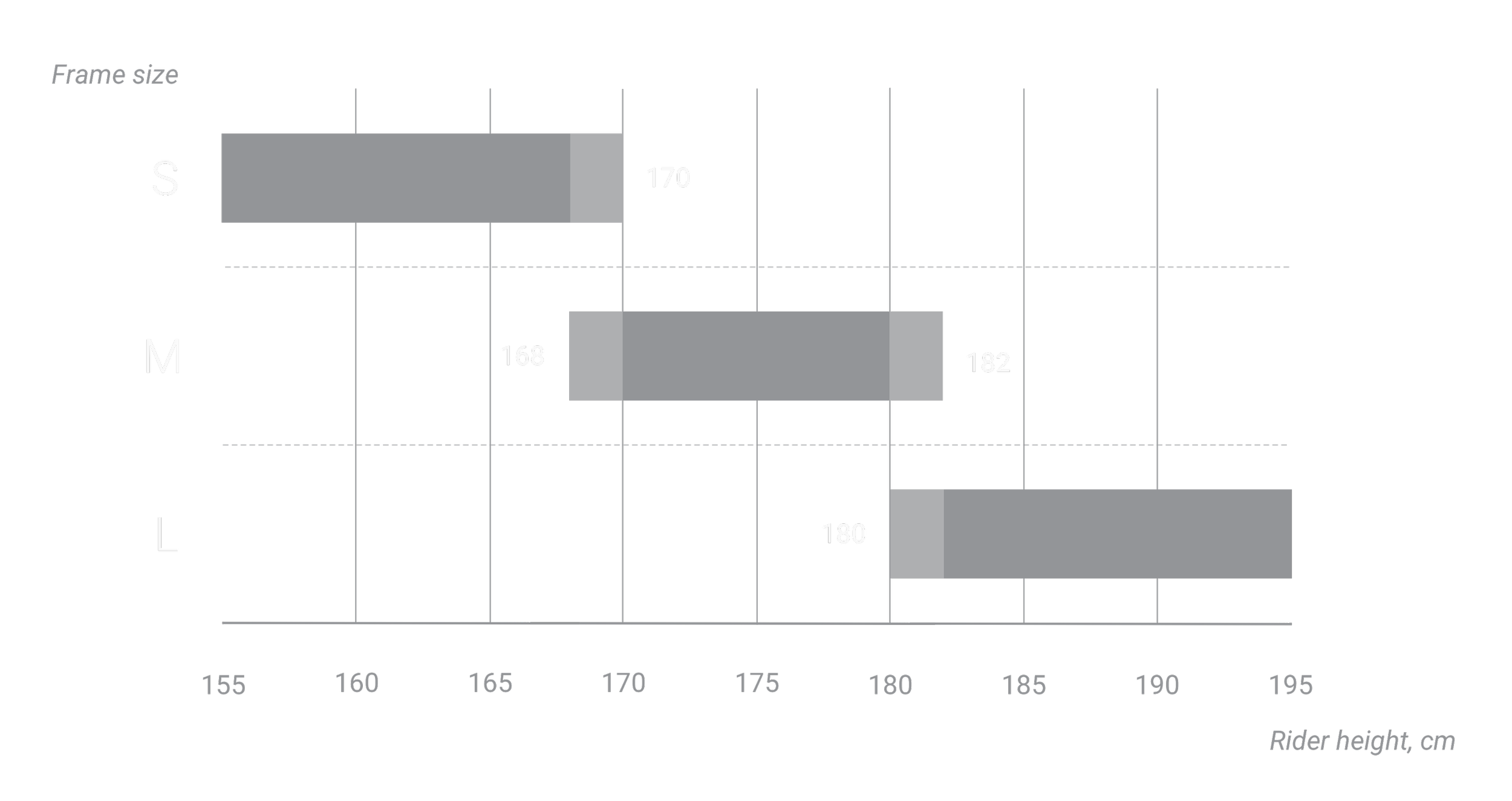

Frame Size Guide
The above are recommended height measurements and frame sizes.
For an optimum fit tailored to your specific needs, please consult our team at info@ponomarets.com.
Geometry
| Frame size | S | M | L |
|---|---|---|---|
| A – Stack in mm | 553 | 572.8 | 602 |
| B – Reach in mm | 395 | 405 | 430 |
| C – Wheelbase in mm | 1031 | 1057 | 1086 |
| D – Seat Tube Length in mm | 500 | 538 | 580 |
| E – Top Tube Length in mm | 520 | 562 | 600 |
| F – Head Tube Length in mm | 137 | 158 | 189 |
| G – Head Tube Angle | 71° | 71° | 71° |
| H – Seat Tube Angle | 74° | 74° | 74° |
| I – Chainstay Lenght in mm | 435 | 435.2 | 435 |
| J – Bottom Bracket Offset in mm | 75 | 75 | 75 |
| K – Fork Offset in mm | 45 | 45 | 45 |
| L – Standover Height in mm | 757 | 777 | 807 |
